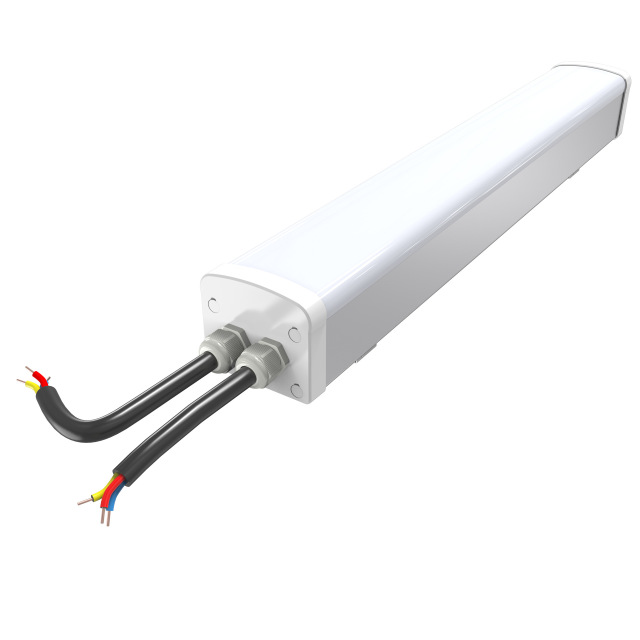

Wind turbine tower tube light YS-FDT

Product Features

·The lamp housing is made of high thermal conductivity aluminum, which allows for faster heat dissipation and longer product lifespan.

·The lampshade is made of anti-aging PC material and anti glare design, with soft light and no yellowing for a long time.

·The light source adopts SMD imported chips to ensure high luminous efficiency and low light decay of the entire lamp, with a lifespan of over 50000 hours and stable quality without maintenance.

·High quality constant current flicker free power supply (special parameter voltage can be customized).

·Can be paired with emergency batteries to achieve power outage emergency lighting function (emergency time 30/60/90/120 minutes).

·Can be equipped with multifunctional power socket boxes and junction boxes.
  • Wind turbine tower tube light YS-FDT
  • Wind turbine tower tube light YS-FDT
  • Wind turbine tower tube light YS-FDT

Description

·The lamp housing is made of high thermal conductivity aluminum, which allows for faster heat dissipation and longer product lifespan.

·The lampshade is made of anti-aging PC material and anti glare design, with soft light and no yellowing for a long time.

·The light source adopts SMD imported chips to ensure high luminous efficiency and low light decay of the entire lamp, with a lifespan of over 50000 hours and stable quality without maintenance.

·High quality constant current flicker free power supply (special parameter voltage can be customized).

·Can be paired with emergency batteries to achieve power outage emergency lighting function (emergency time 30/60/90/120 minutes).

·Can be equipped with multifunctional power socket boxes and junction boxes.

Product parameters
Product model

YS-FDT-10W

YS-FDT-20W

YS-FDT-30W

Rated power 10 watts 20 watts 30 watts
Specification and size

300*88*78mm

500*88*78mm

600*88*78mm

Working voltage

AC100V-AC240V  / DC24V-DC48V / AC36V(Special voltage can be customized)

color temperature

3500k~6500K

Light effect

≥110LM/W

display index

≥80

lighting angle

≥160°

working temperature

-40˚C ~ +50˚C

relative humidity

10% - 95% (Does not condense)

Protection level

IP65

Material

Lamp housing: aluminum Lampshade: PC Bracket: 304 stainless steel

Light source life

≥50000 hour

emergency time

30/60/90/120 minute

application area
It is mainly used for lighting the internal systems of wind turbine towers and engine rooms, and can also be used for lighting in special places such as electrical rooms, mechanical rooms, and subway tunnels.

Installation dimension diagram (unit: mm)

Product application diagram
